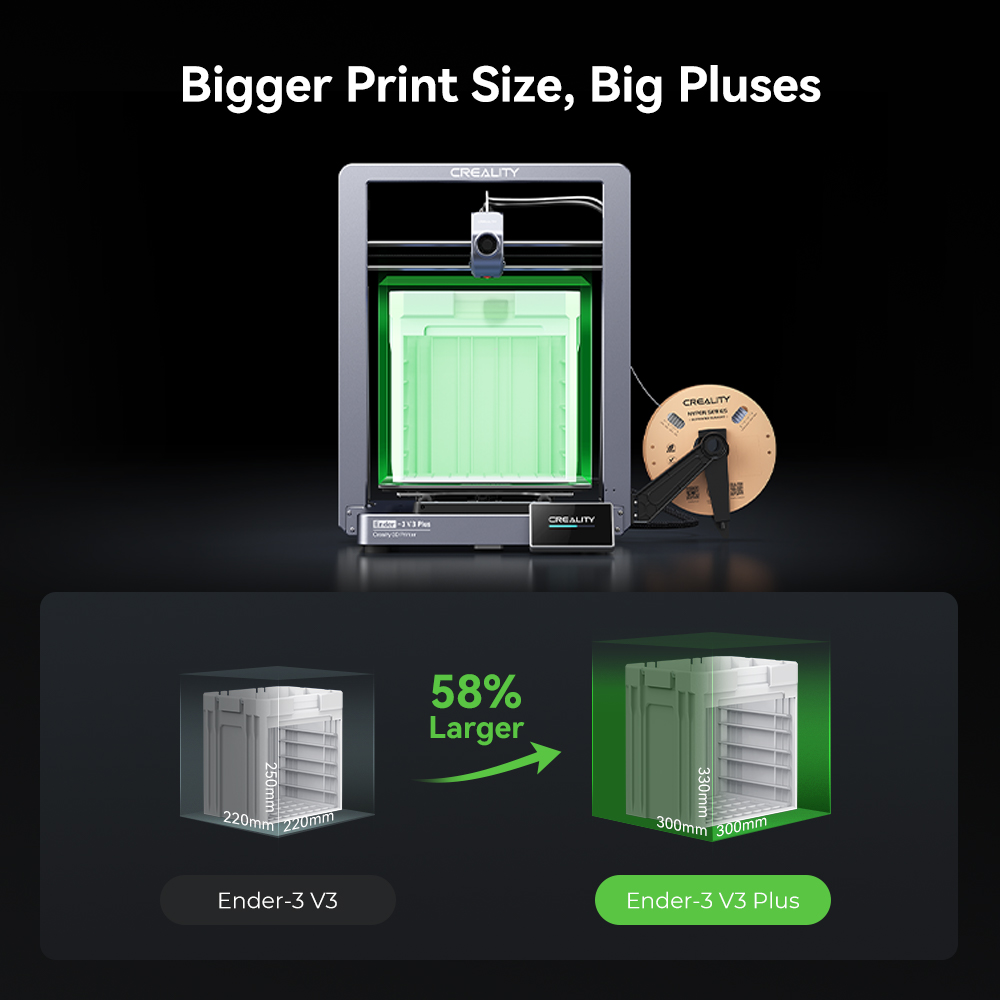

① Spacious 300*300*330mm Build Volume for Greater Creativity
Creality Ender 3 V3 Plus boasts a generous 300×300×330mm build volume, letting you print life-size items in one piece—no tedious assembly of split parts. It also lets you batch-produce multiple small components at once and minimizes the need to split oversized 3D models, significantly boosting printing efficiency while unlocking more creative possibilities for your projects.
② 600mm/s High-Speed Printing with CoreXZ & Dual Y-Axis Motors
Equipped with a CoreXZ structure and dual Y-axis motors, this 3D printer supports a maximum printing speed of 600mm/s and 20,000mm/s² acceleration—12 times faster than standard 3D printers. Whether you’re prototyping new designs or handling small-batch production, it slashes both time and costs compared to traditional printers, helping you turn ideas into reality quicker.

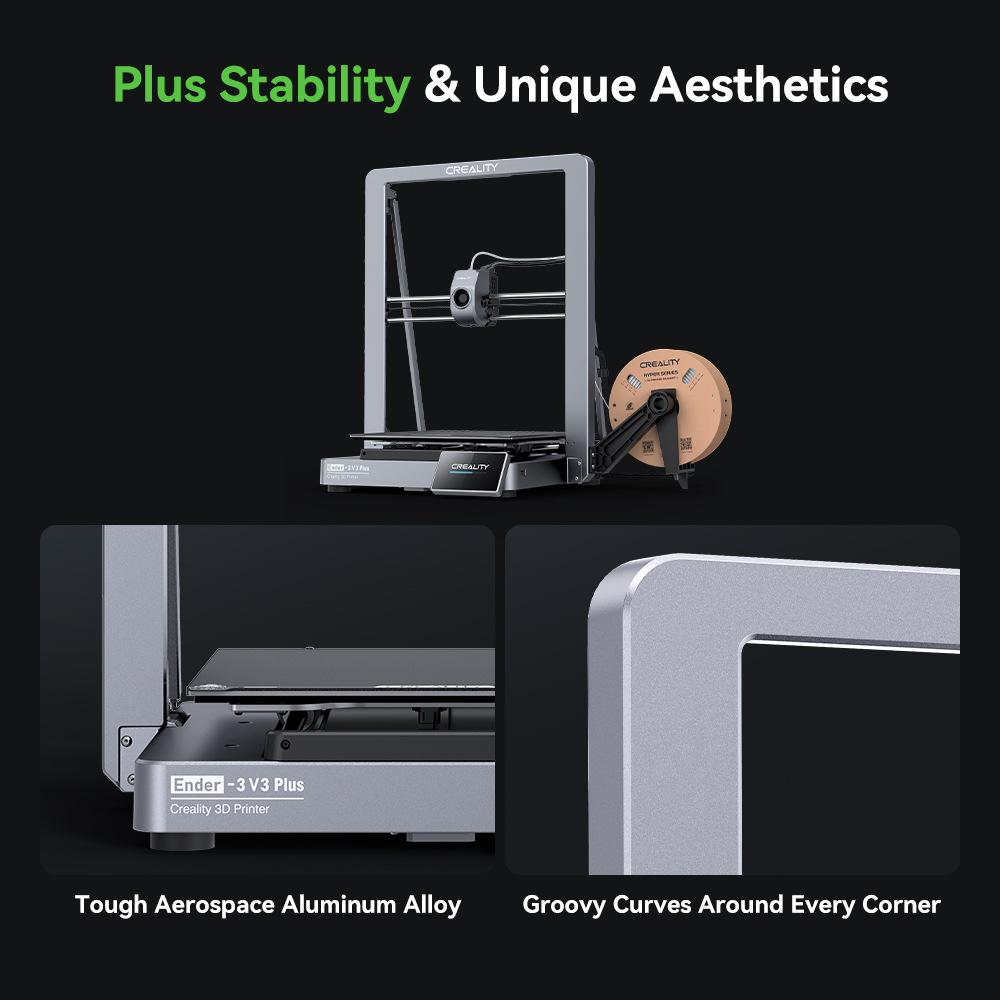

③ Upgraded XZ Belt & Stable Z/Y-Axis: Minimize Wobble for Crisp Layers

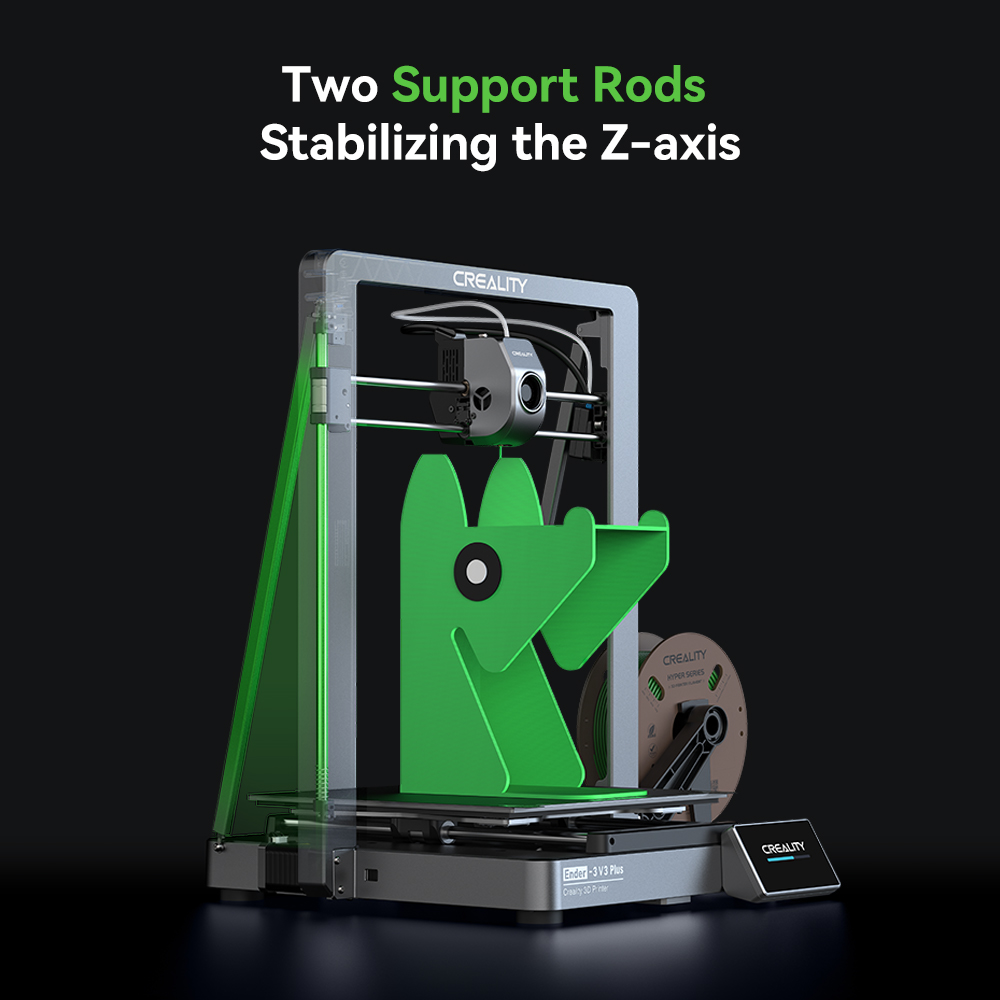

The XZ belt requires no manual tension adjustment and resists slipping even at high speeds, ensuring smooth, consistent printing movement over long use. The Z-axis features precision optical shafts and a synchronous belt, which optimize layer lines for sharp, high-quality models—even when printing fast. For the Y-axis, two 500mN.m motors drive the print bed along sturdy linear rods, easily handling large, heavy prints. Plus, two extra support rods connect the base and gantry top to form a rigid triangular structure, reducing Z-axis wobble further.

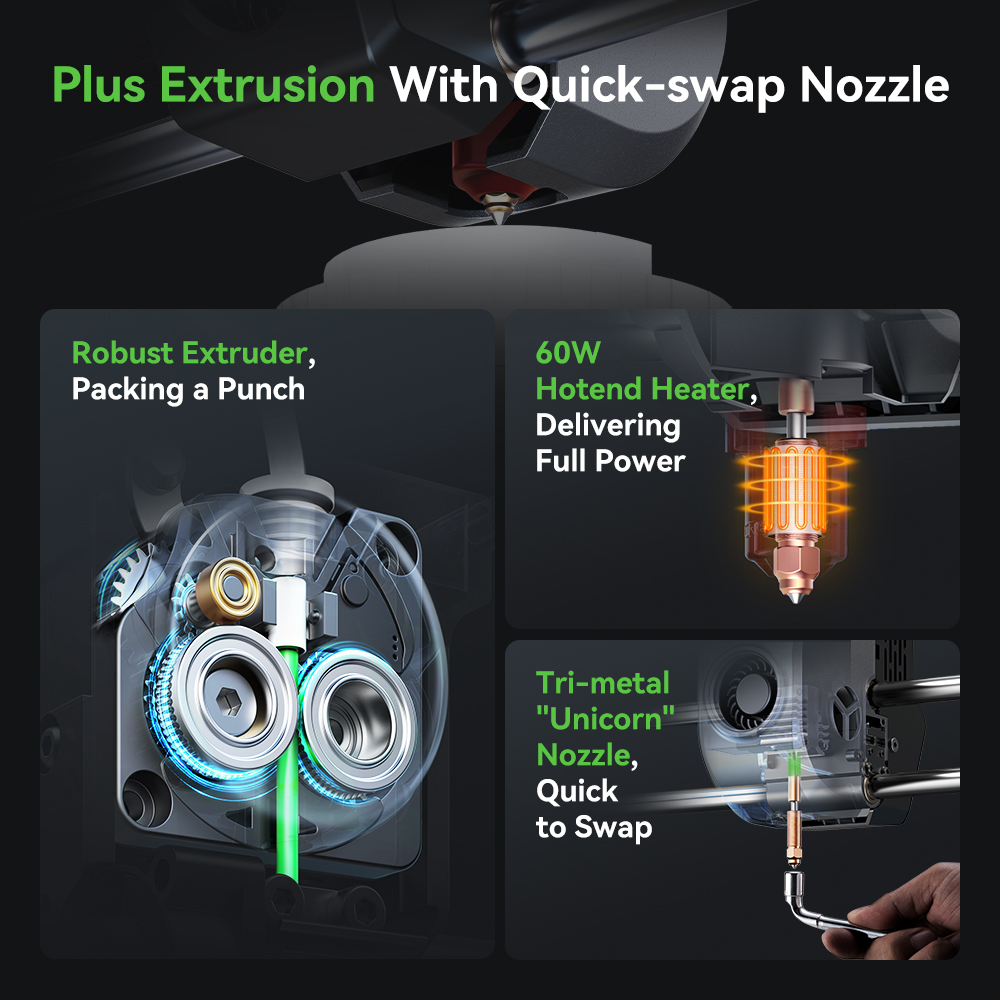

④ Robust Direct Drive Extruder & Tri-Metal "Unicorn" Nozzle
The direct drive extruder is reinforced with a bolster spring and ball plunger, delivering 1000+ hours of clog-free extrusion. It grips filament tightly without slack, while the side spring enhances gear grip and the powder metallurgy lever resists deformation to maintain steady extrusion force. The tri-metal nozzle (with an all-metal nozzle-throat design and hardened steel tip) ensures smooth material flow, long service life, and easy disassembly for maintenance.

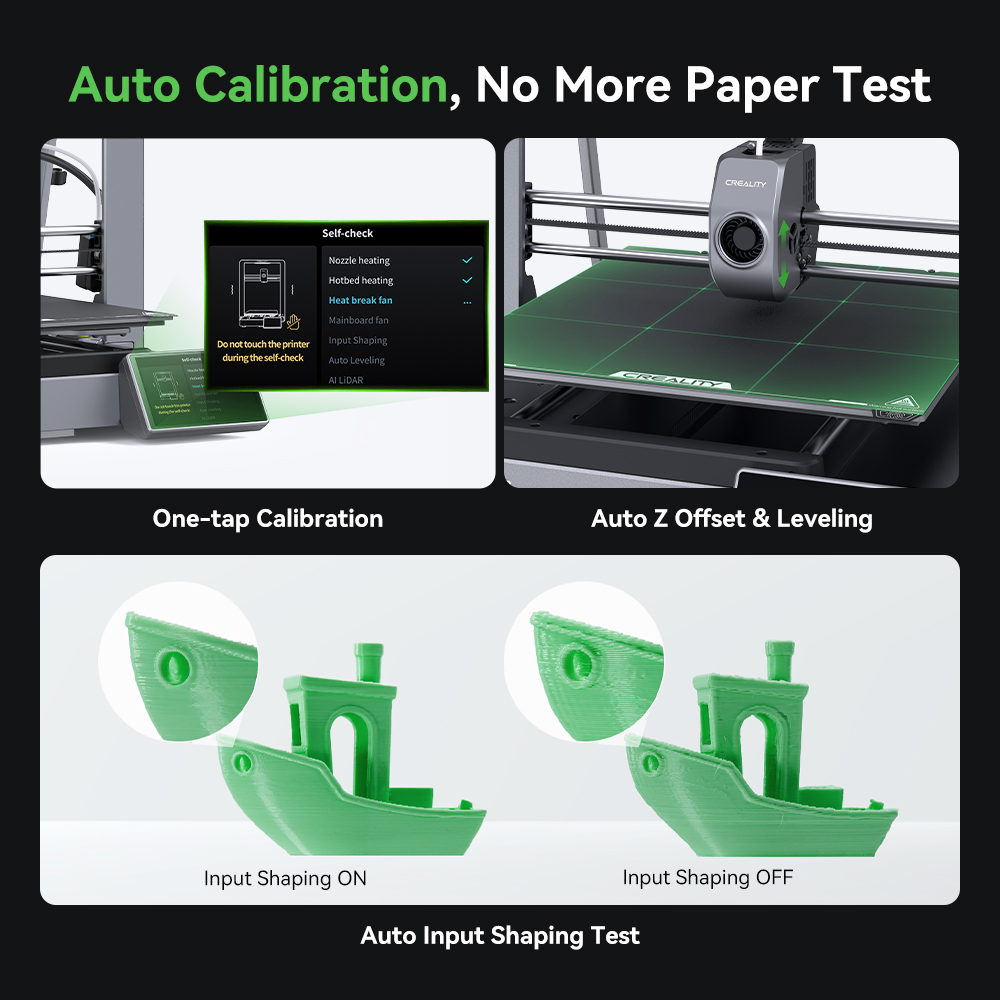

⑤ One-Touch Auto Calibration & Quick Pre-Assembled Setup
Forget tedious manual adjustments—this printer offers one-touch auto calibration, including auto Z-offset, auto leveling, and auto input shaping tests. No more paper-based height checks or screw-turning; it gets everything print-ready in seconds. Additionally, the Ender 3 V3 Plus arrives in highly pre-assembled modules, so you can set it up and start printing in no time.
| Brand |
Creality |
| Model |
Ender-3 V3 Plus |
| Build Volume (mm) |
300*300*330mm |
| Product Dimensions (mm) |
410*445*577mm |
| Package Dimensions (mm) |
623*503*245mm |
| Net Weight (kg) |
11.5KG |
| Gross Weight (kg) |
14.5KG |
| Extruder |
Direct Drive Extruder |
| Supported Filaments |
PLA/TPU/PETG/ABS/PLA-CF/PETG-CF/CR-carbon |
| Build Surface |
PEI |
| Display Screen |
4.3-inch IPS Screen |
| Power Loss Recovery |
√ |
| Filament Runout Sensor |
√ |
| Dual Z-axis |
√ |
| Auto Leveling |
√ |
| Data Bus Width |
32-bit |
| Max. Heatbed Temperature |
100℃ |
| Max. Nozzle Temperature |
300℃ |
| Rated Voltage |
100-120V~, 200-240V~, 50/60Hz |
| Rated Power |
350W |
| Max. Printing Speed |
600mm/s |
| Typical Printing Speed |
300mm/s |
| Acceleration |
20000mm/s² |
| Power Input Frequency |
50/60Hz |
| Nozzle Diameter |
Standard 0.4mm |
| Layer Height |
0.1-0.35mm |
| Printing Accuracy |
±0.1mm |
| Filament Diameter |
1.75mm |
| File Formats |
STL/OBJ/3MF |
| Slicing Software |
Creality Print |
| Manufacturer Information |
Manufacturer Information |
| Manufacturer |
Shenzhen Creality 3D Technology Co., Ltd. |
| Manufacturer Address |
18F, Jinxiu Hongdu Building, Meilong Avenue, Xin Niu Community, Minzhi Street, Longhua District, Shenzhen, China |
| Email |
cs@creality.com |
Country of Origin: Manufactured in China
Safety Warnings
·
Keep away from children and flammable materials. Place on a
stable, heat‑resistant surface.
·
Do not touch the nozzle (max. 260°C) or heated bed (max. 120°C)
during operation to prevent burns.
·
Use in a well‑ventilated area. Always use the original power
cord to avoid electrical hazards.
·
Use only compatible FDM filaments (PLA/ABS/PETG, etc.). Store
filaments in dry, sealed containers.
Instructions for Use
Basic Components
Main Body, Control Panel, Extruder (Nozzle), Heated Print
Bed, Filament Spool Holder, X/Y/Z Axes
Quick Operation Steps
·
Unpack and place the printer on a stable surface. Connect the
original power adapter.
·
Level the print bed (auto or manual) to set the proper nozzle
height.
·
Load filament: Heat the nozzle to the recommended temperature,
insert filament into the extruder until extrusion occurs.
·
Import model files via USB/SD card/Wi‑Fi, then start printing.
·
After printing, allow the nozzle and bed to cool before removing
the model.
Daily Maintenance
·
Clean the nozzle and print bed regularly to prevent residue
buildup.
·
Unload filament if the printer will not be used for a long
period; keep filaments dry.
·
Unplug the power cord when not in use. Avoid humid environments.
Common Troubleshooting
·
Poor model adhesion: Re‑level the bed or increase bed
temperature.
·
No filament extrusion: Check filament feeding or clean the
nozzle.
·
Abnormal noise: Turn off the power and check for loose
components.
