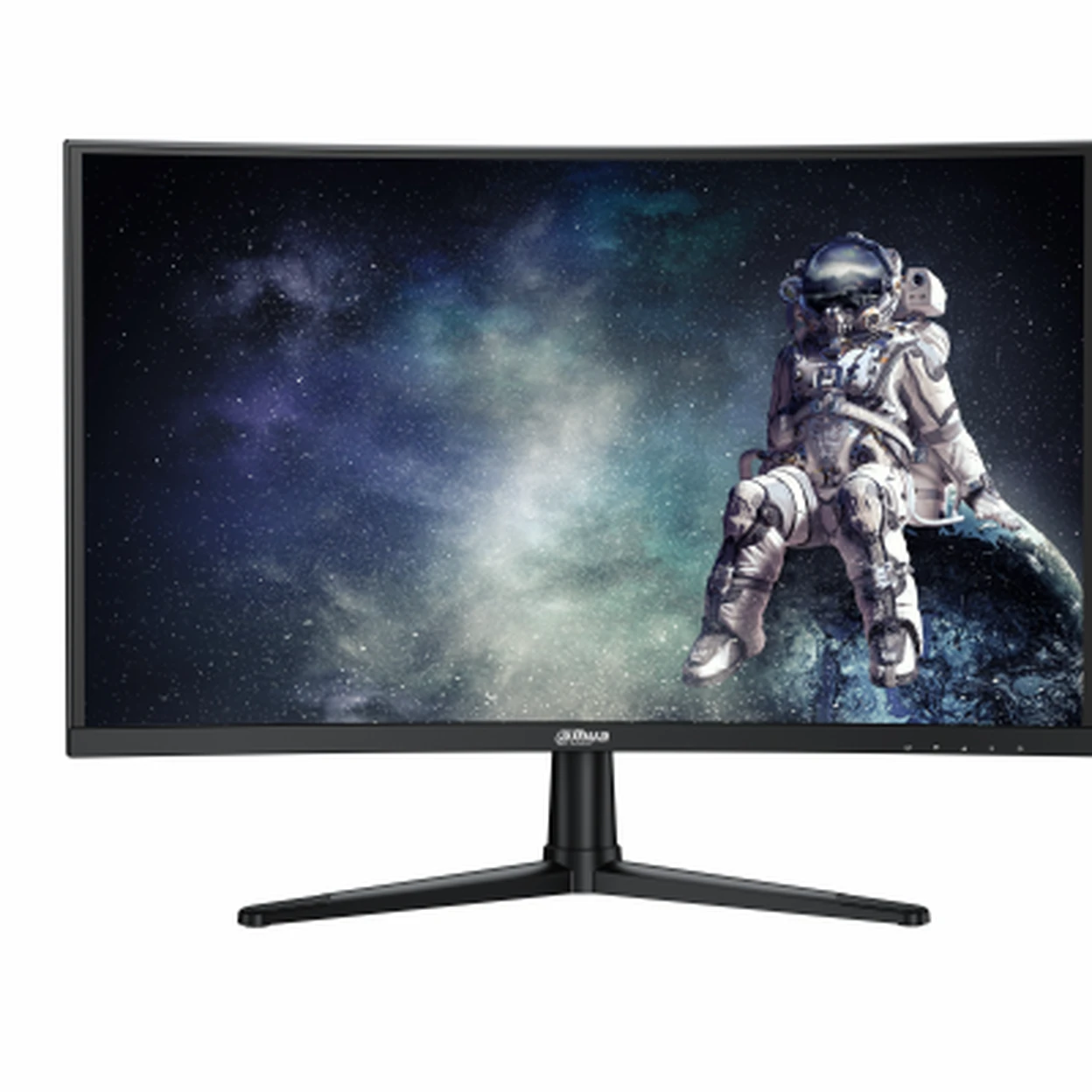

Dahua 24" FHD 255Hz Curved Gaming Monitor, Curved Gaming Monitor, 1920×1080, 255Hz, VA Panel, 1ms MPRT, Adaptive Sync, Immersive Curved Design, High Refresh, DP1.2 & HDMI, For Immersive Gaming

Display

Model

DHI-LM24-E240C

LCD Technology

VA

Backlight

ELED

Curved Screen

Yes

Curvature

1,500 R

Screen Size

23.6 inch

Aspect Ratio

16:9

Viewing Size

521.395 (H) × 296.285 (V) mm

Screen-to-Body Ratio

≥85%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2716 mm × 0.2716 mm

Pixels Per Inch

93.3

Resolution

1920 (H) × 1080 (V)

Refresh Rate

240 Hz

Display Color

8 bit

Color Gamut

85% NTSC

Brightness

350 cd/m² (typ.)

Contrast Ratio

3000:1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Flicker-free Technology

Yes

Low Blue Light

Software blue light protection

Function

HDR

HDR 10

Device Ports

Input Port

1 x HDMI 2.0 (1920 × 1080@240 Hz), 1 × DP 1.4 (1920 × 1080@240 Hz)

Output Port

1 × Audio out

Power & Environmental Conditions

Power Supply

12 VDC, 3 A

Power Type

power adapter

Power Consumption

17.4 W (basic), 24 W (typ.), 34 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

–5° / 20°

Product Dimensions

537.9 mm × 320.3 mm × 90.7 mm (21.18" × 12.61" × 3.57") (W × H × D), without base

Package Size

623 mm × 400 mm × 145 mm (24.53" × 15.75" × 5.71") (W × H × D)

Unilateral Splicing

U/L/R/D: 3.2 mm/3.2 mm/3.2 mm/16.4 mm

Net Weight

3.6 kg (7.94 lb)

Gross Weight

4.2 kg (9.26 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94" × 3.94")

Accessory

Power adapter, wall-mount bracket, DP cable, user's manual, legal and regulatory information etc.

Optional Accessory

Wall mount

Certification

Certifications

CE EMC, CE LVD, CE ERP
