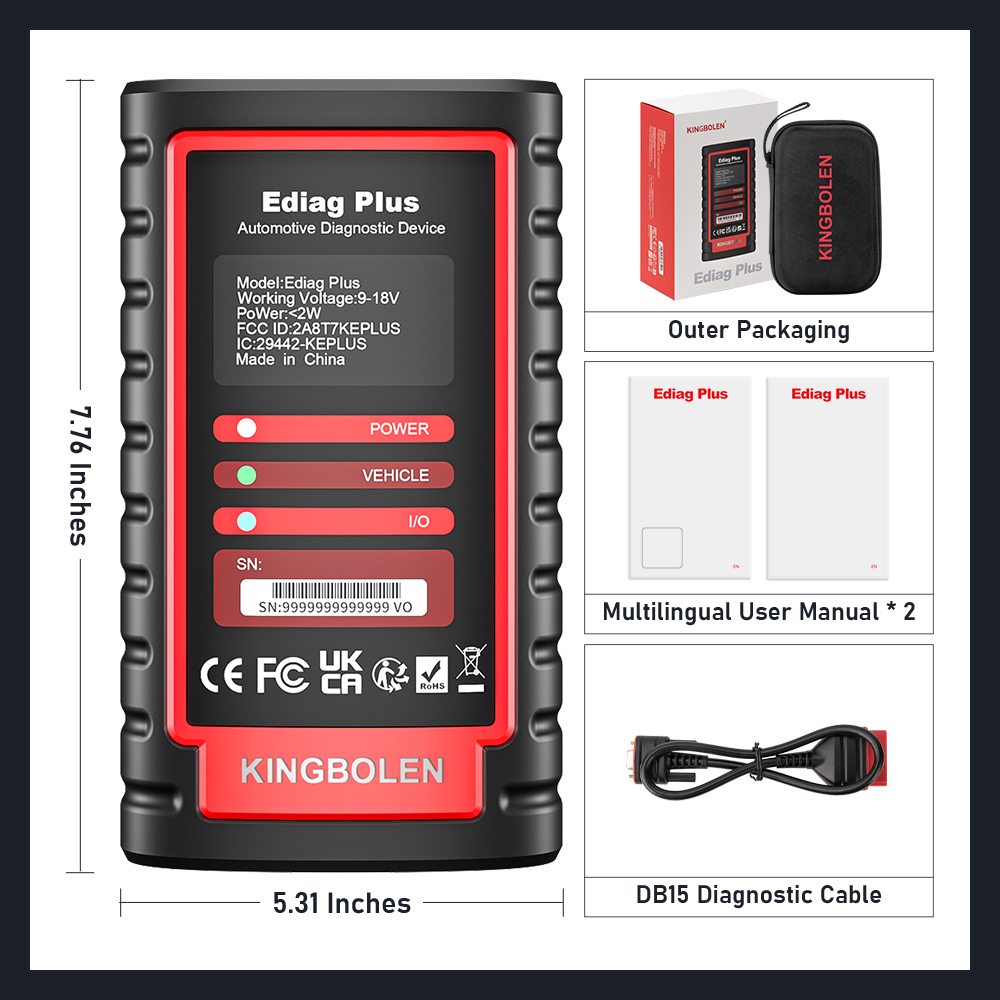

KINGBOLEN EDIAG PLUS All System OBD2 Diagnostic Scanner, Intelligent Scan Tool Support CAN-FD Protocol,15+ Reset, ECU Coding, with 1 Year Software Subscription

Support OBD2 full function:

1.Read Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Clear Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitor

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related Power train components and systems.

9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Support 15 Common Special Functions:

1.ABS Bleeding:When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset:When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4.Electronic Throttle Sensor Reset: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding:After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6.SAS Reset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gearbox Matching:This function can complete the gearbox self learning to improve gear shifting quality

9.IMMO Service:To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching:Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration:It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption:This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.AFS Reset:It is used to initialize the adaptive headlamp system.

15.Sunroof Initialization:This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

Supports Full System Diagnosis：

The KINGBLOEN Ediag PLUS OBD2 Bluetooth scanner can work as a professional scanner, which can perform comprehensive diagnosis through all available systems in the vehicle to read/clear codes, data stream, read control module information, and bi-directional control for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Active Test:

It supports a bi-directional control capability to send the command to the vehicle ECU to perform active/component tests to check its functionality.

Commonly-Used Active Tests including:

- EVAP Vent / Purge Solenoid;

- Fuel Injector Test;

- Cycling A/C Clutch Relay;

- Cycling ABS Motor Pump;

- Cooling Fan Test;

- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on the sound horn;

And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System (LKAS) ; Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests, etc.

*Actuation test functions vary by the vehicle system.

ECU CODING(Online/Offline Coding):

· Online Coding: The corresponding configuration of each chassis number of Volkswagen will be recorded in the server. Through online coding, the correct vehicle code can be provided to ensure the normal use of the function. Compatible with Volkswagen/Audi;

· Offline Coding: Compatible for Volkswagen/Audi/Mercedes/BMW/Land Rover/Jaguar/Porsche;

· Unlock the hidden functions: To activate or disable some functions ;

· Match/Initialize components adaptive data after replacing some components.

· Programmable Module Installation:

This function is used to match new module data. When replacing the ECU with a new module, copy the recorded data of the original vehicle module into the new module to code the new module,which is compatible with Ford/Lincoln/Mazda.

 Multilingual + 1-year Free Update:

It provides 12 languages for free use, including English, French, Spanish, German, Russian, Italian, Portuguese, Japanese, Turkish, Polish, Greek, and Chinese.

And supports 1-year full software function use and update, after the free update period is due, you can still use this tool's OBDII functions for free, or to renew the subscription and continue to use all its features on all compatible models.

Worldwide Vehicle Coverage + AutoAuth Access:

Supports CAN-FD protocol vehicles(for GM vehicles after 2020); Compatible with OBDII protocols that can work on 120+ car brands, including 12V sedans, light-duty trucks, SUVs, and minivans.

And also supports AutoAuth for FCA SGW, which makes it compatible with Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019.

(*Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself.)

Featuring Intelligent Diagnosis：

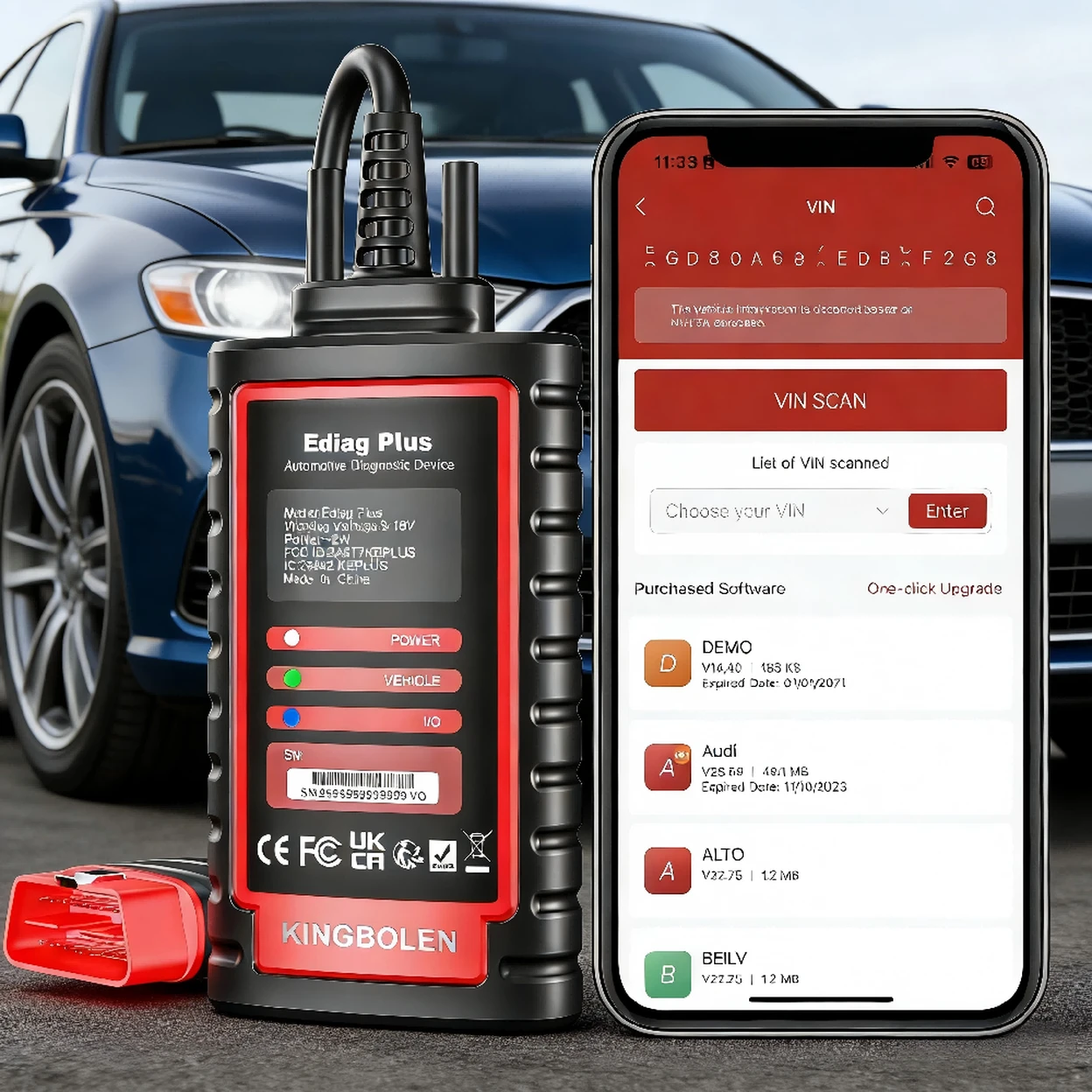

This diagnostic scanner has an Auto-VIN function. It can automatically identify the vehicle's VIN number and detail models and then enter the vehicle diagnostic menu. One-click for a complete vehicle system scans to generate a detailed vehicle health report after diagnosis.

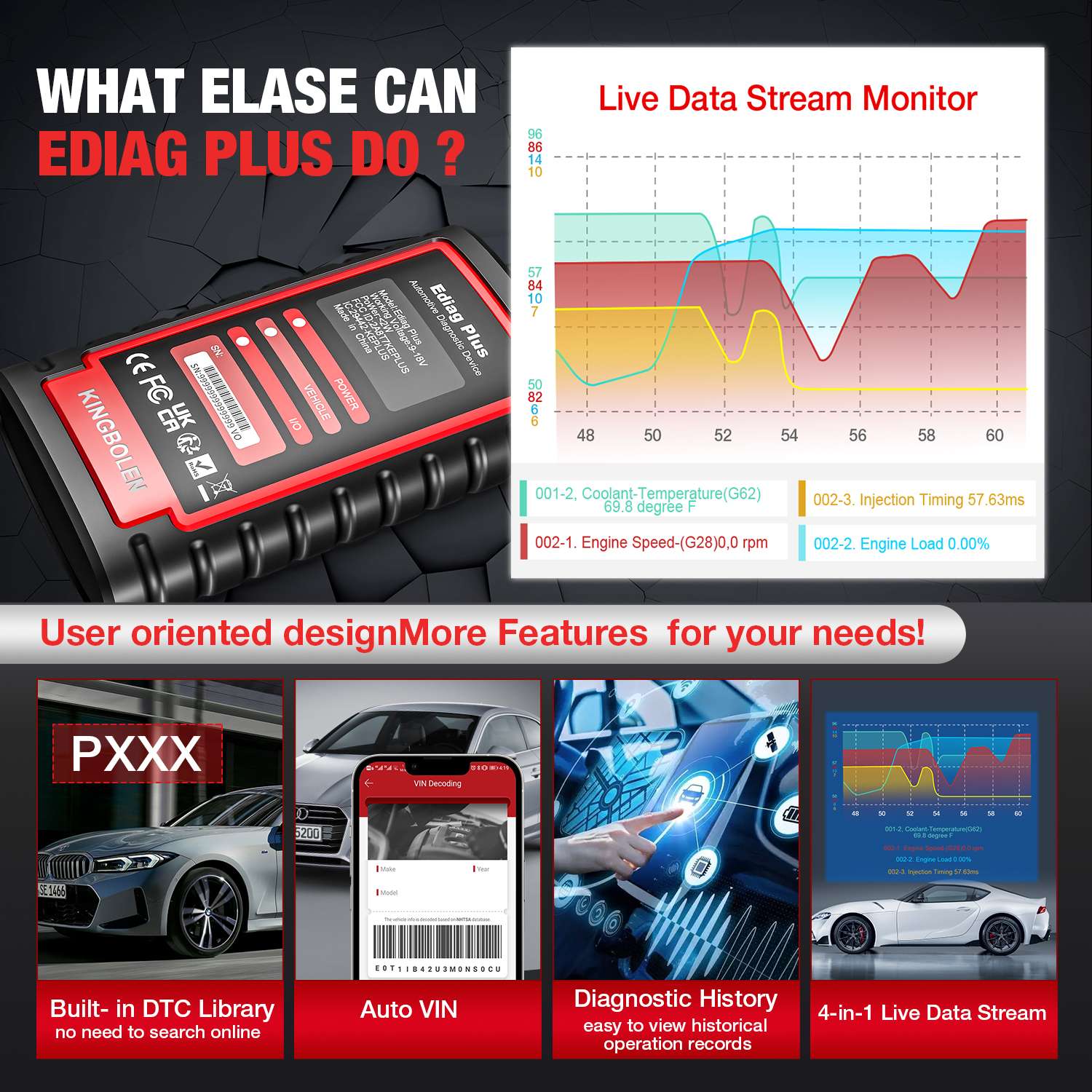

Diagnostic reports records can be viewed and shared. Support a maximum of 4 live data to be merged into a graphic for easier comparison and data records to better monitor vehicle performance and analyzes abnormal parameters.
