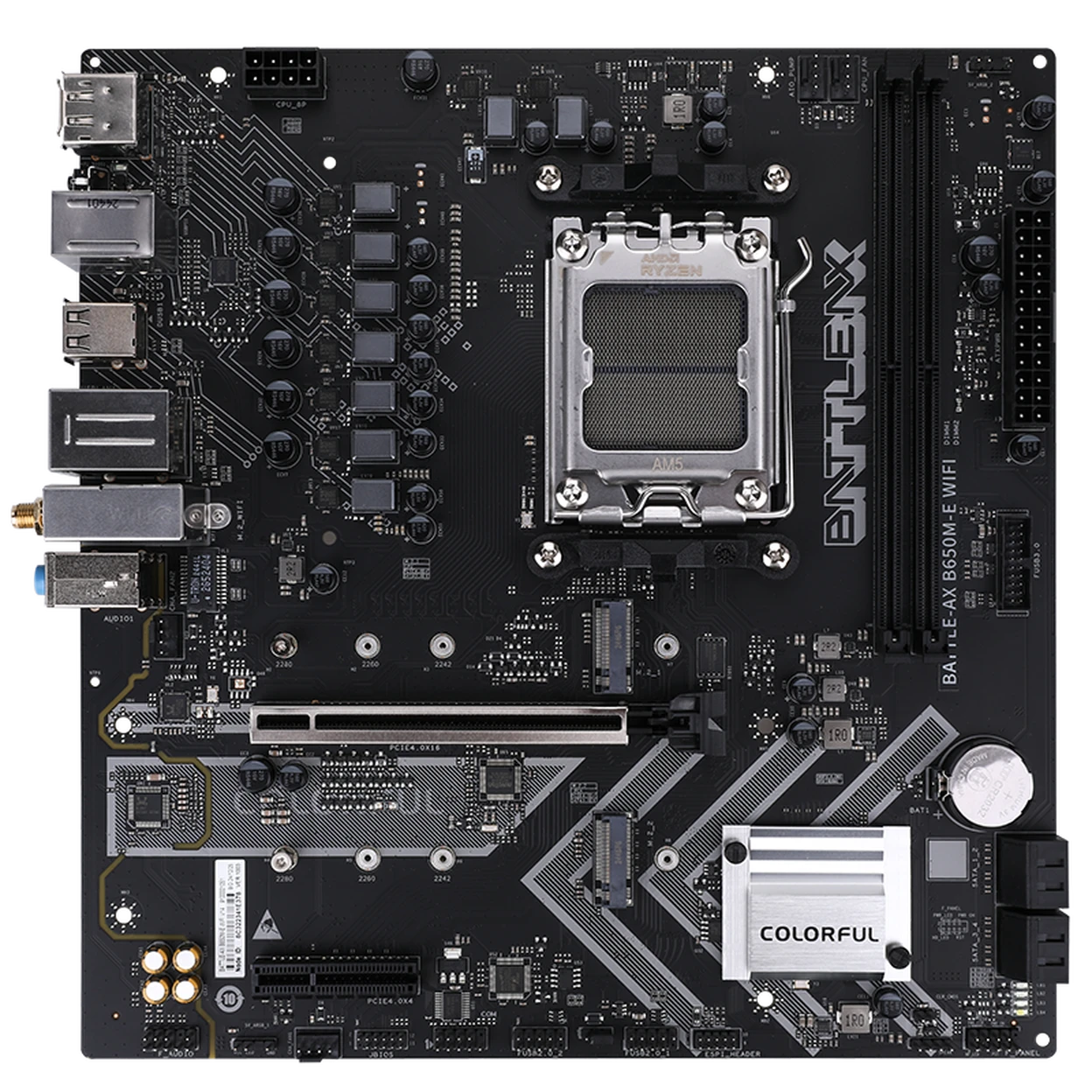

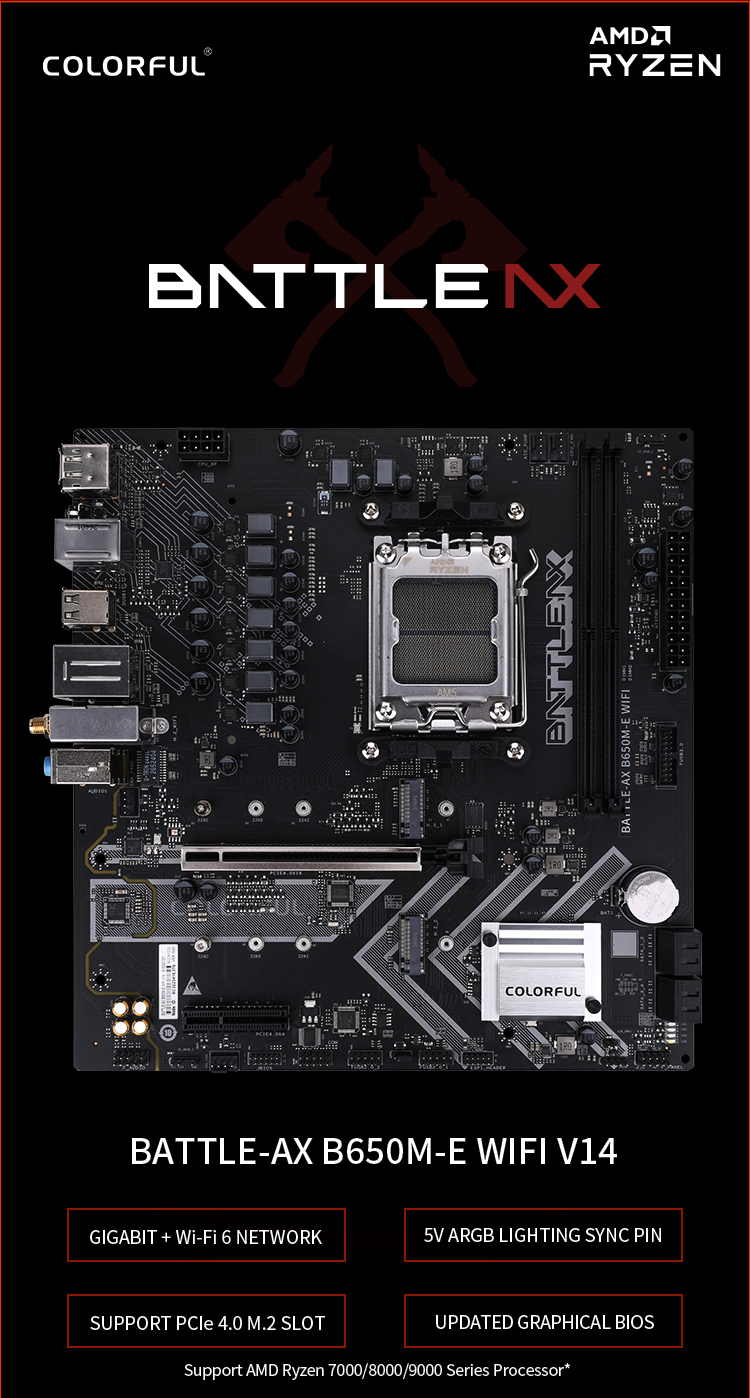

COLORFUL BATTLE-AX B650M-E WIFI V14 Motherboard， M-ATX form
10+ sold
£79.99
£179.99
55% off
£10 off over £89.99View coupons
Series:BATTLE-AX B650M-E
Quantity
Delivery option
Delivery
order before 11:00
or
Pickup
Guarantee
30 Days Free Returns
24/7 Customer Support
Product Description
Important Information
Specifications
Product Description
Important Information

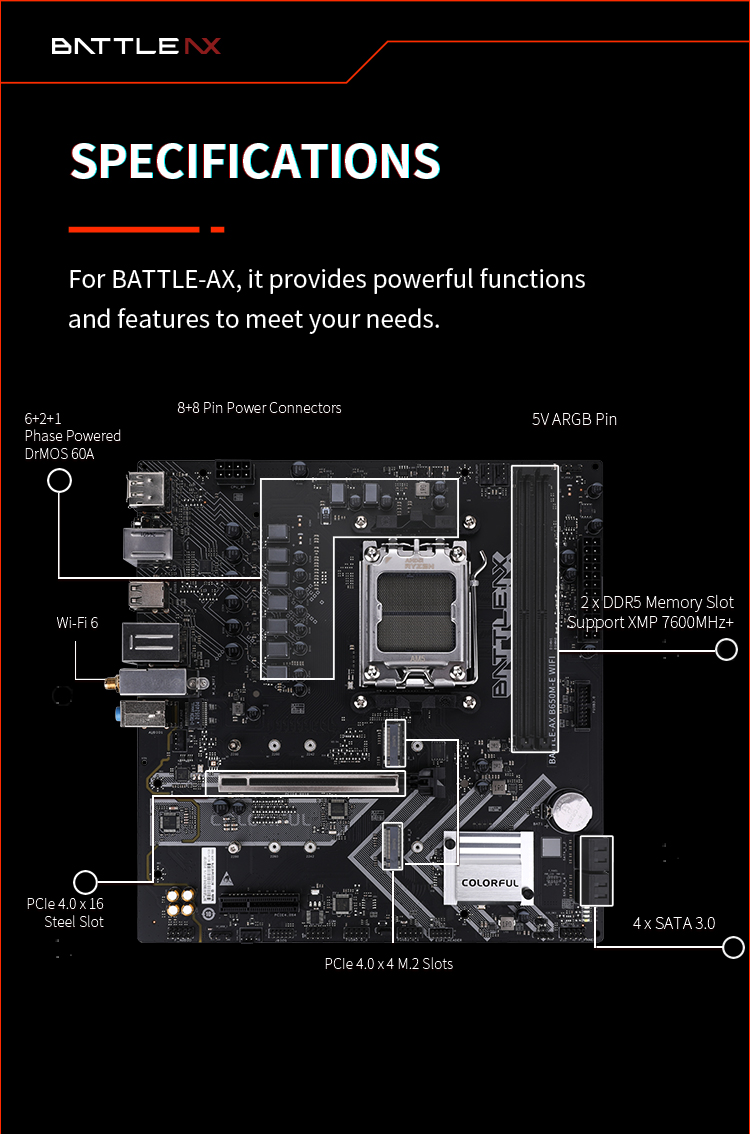

| Model | BATTLE-AX B650M-E WIFI V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B650 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn to check the latest processor support list) |

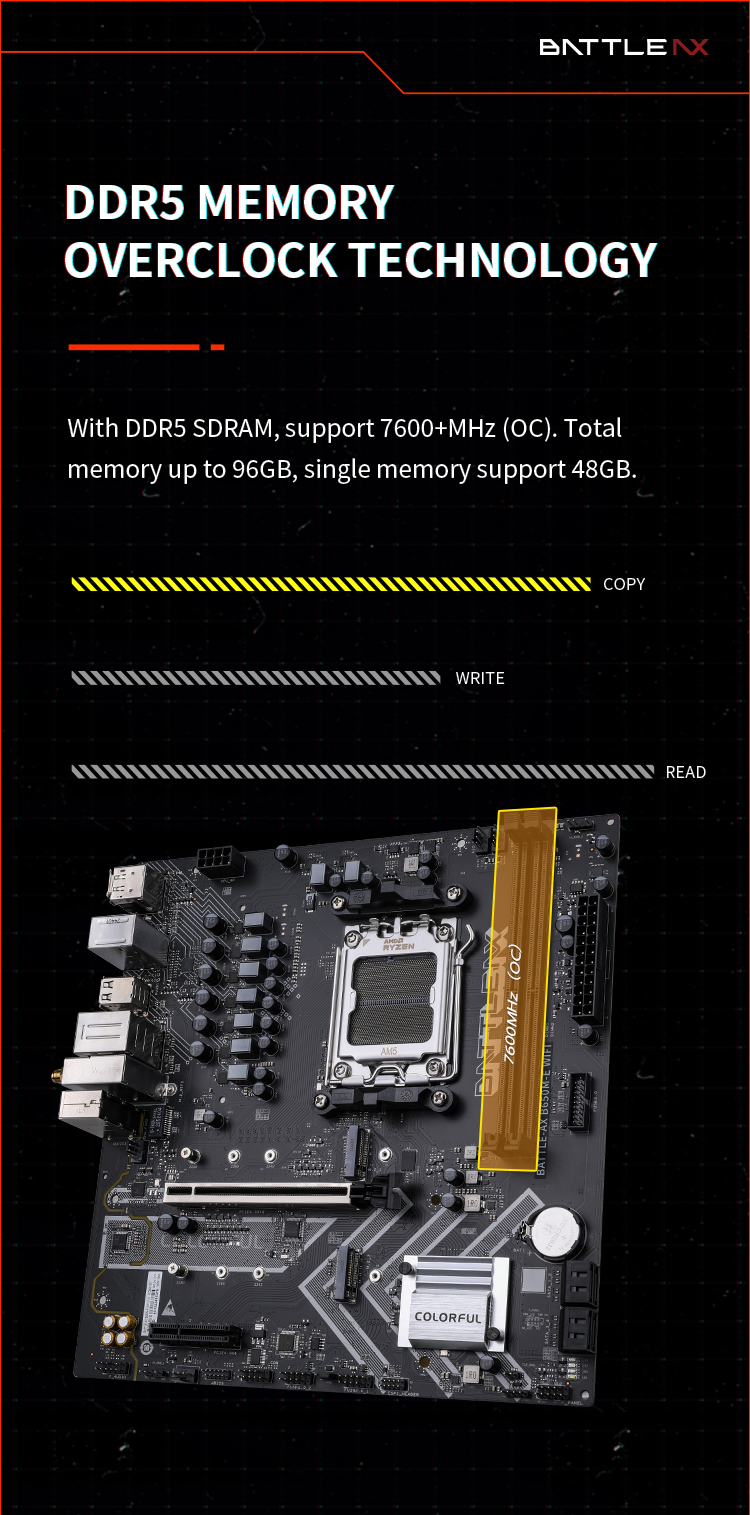

| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |

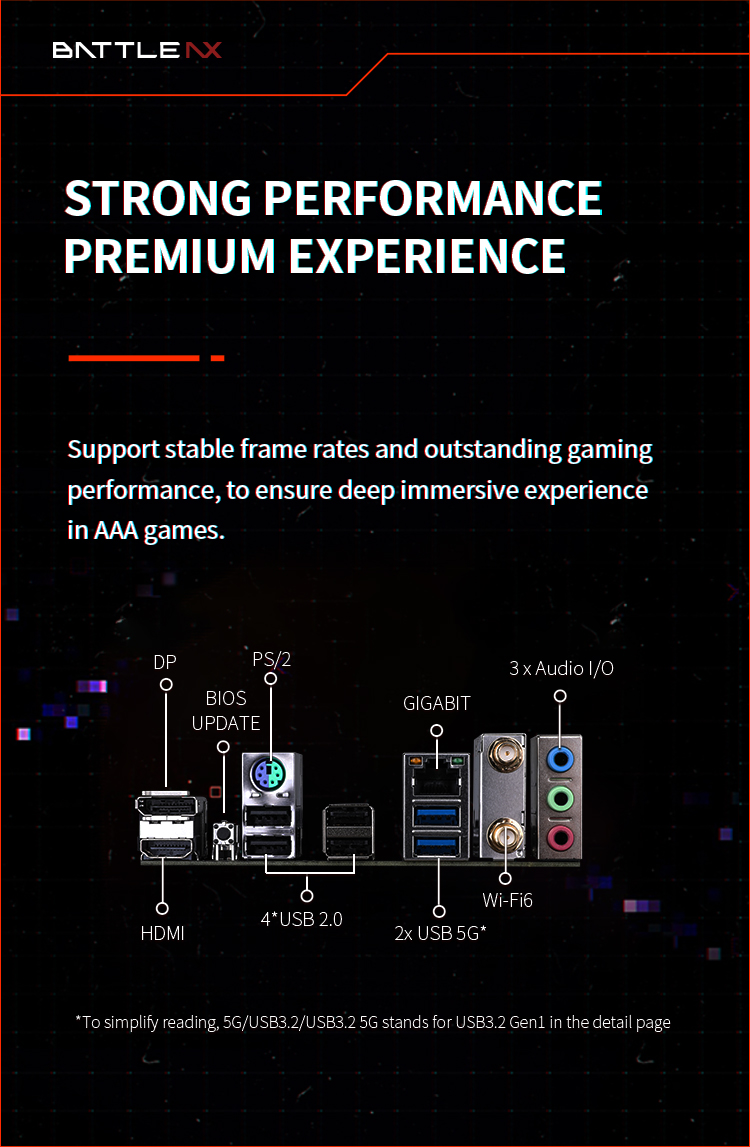

| Board I/O | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×PS/2 interface -1×Gigabit network interface -2×Wi Fi 6 antenna interfaces -1×BIOS update button -3×Audio interfaces (audio input/output/microphone) On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×COM port pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 4.0 x4 slot |
| BIOS | 256M UEFI, supports multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111K Gigabit Ethernet Card, AX200 WiFi 6 Wireless Network Card, Bluetooth 5.2 |

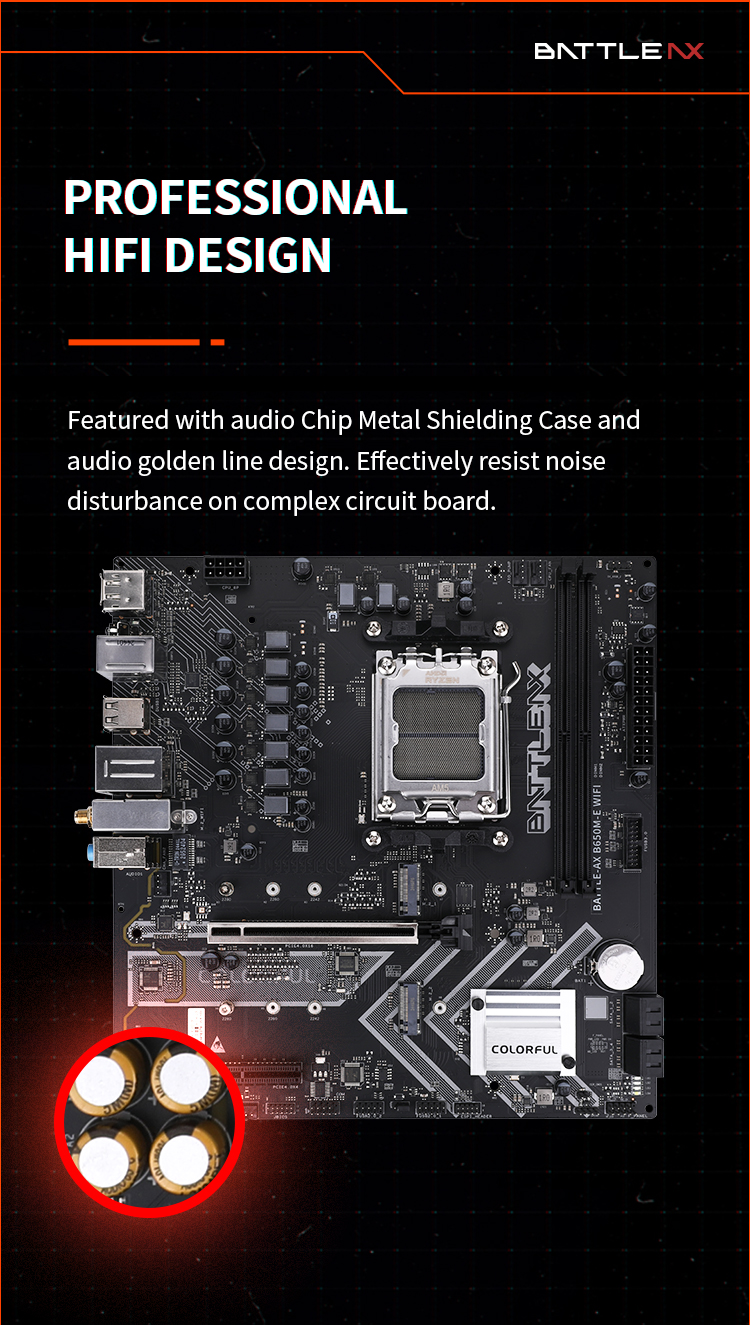

| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | MATX 244 x 235 mm |
Specifications
Model
BATTLE-AX B650M-E WIFI V14
Country of origin
China
Brand
COLORFUL
